Hi there,
I’am using the Beta of RoyalTS V7. Sometimes when I try to connect on a server with freeRDP the complete application freezes and I have to force terminate it. The only thing you can see is a small bar in the left downer site of the window. For me it looks like a bug.
regards
Daniel
P.s. I configured the connection to use a SOCKS5 proxy.
Hi Daniel,
we have heard that on a handful systems the app is freezing sometimes but we weren’t able to reproduce the issue on our systems yet. Maybe it’s related to the target system and protocol version used. One thing we know from the feedback is that killing the wfreerdp.exe using task manager will “unfreeze” Royal TS. If we can somehow reproduce this issue, we can look into it.
Regards,
Stefan
Hello,
We also experience the same issues with FreeRDP when it just hangs until we kill the process.
If you can share repro steps for us or more details (OS/RDP versions involved), we can try to reproduce this and see if we stabilize this.
Windows 10 (Version 21H2 OS Build 19044.2251).
Computer joined to Windows AD domain.
Brand new installation of RoyalTS version 7.0.11108 - Beta
Active plugin RDP Based on FreeRDP 7.00.11108.0

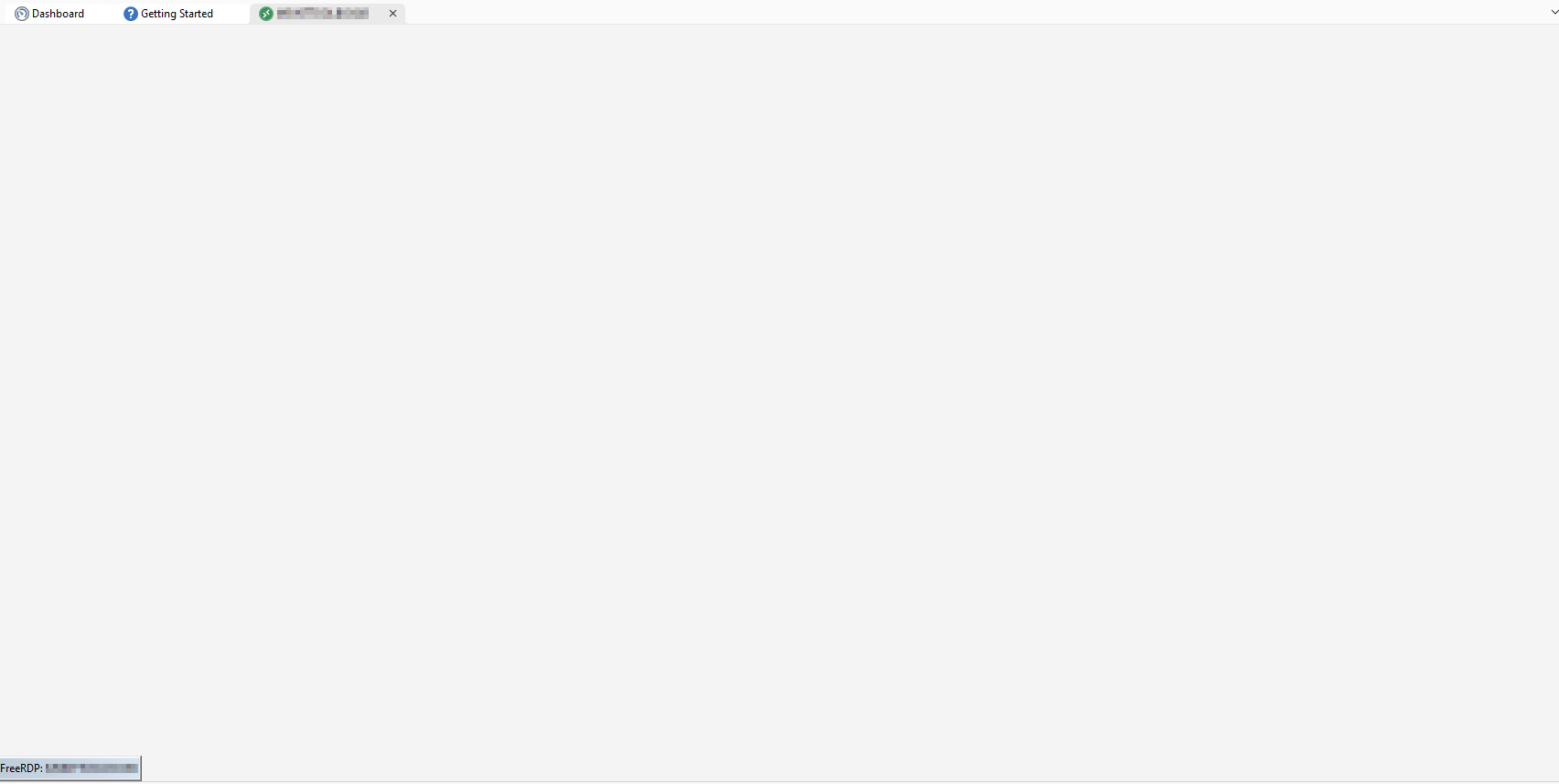

Initial connection opens fine, once window closed and I try to reconnect - it hangs until I kill the wfreerdp.exe process. See screenshot below:
Hi Alexander,
thanks for the details. We did some tests and for a short period of time we were able to see a similar issue but as soon as we investigated further, we weren’t able to repro it anymore. Can you always reproduce the issue? Or maybe you have repro steps which reliably reproduces the issue? Is it with every connection/server or just specific ones?
Not sure what’s blocking the UI/app in this scenario. We will continue to look into it and hopefully we can figure out what’s going on and fix or improve the issue.
Regards,
Stefa
Hi Stefan,
It happens randomly, I just launched RoyalTS this morning and it hanged on the first attempt to connect via freerdp plugin.
Hi Stefan,
Feel free to reach out directly if you need more info/logs/etc or access to check it out.
Thanks
Alex
Updated to Royal TS 7.00.11221 - issue still persists.
Updated to Royal TS 7.00.20116 - no change. It keeps hanging.
Hi Alexander,
we still haven’t figured out what could cause this. Can you send us a mini dump when that happens. Maybe we can figure out what’s blocking the UI.
Thanks,
Stefan
Stefan, how do I create a mini dump? Thanks
The easiest way would be to open the Windows task manager, go to the Details view, select wfreerdp.exe which hangs, right-click and select “Create dump file”.
Thanks, I have the dump now, where do I send?
I ran analyze on the dump file:
0:000> !analyze -v
*******************************************************************************
* *
* Exception Analysis *
* *
*******************************************************************************
KEY_VALUES_STRING: 1
Key : Analysis.CPU.mSec
Value: 2234
Key : Analysis.DebugAnalysisManager
Value: Create
Key : Analysis.Elapsed.mSec
Value: 44122
Key : Analysis.IO.Other.Mb
Value: 14
Key : Analysis.IO.Read.Mb
Value: 0
Key : Analysis.IO.Write.Mb
Value: 29
Key : Analysis.Init.CPU.mSec
Value: 468
Key : Analysis.Init.Elapsed.mSec
Value: 45456
Key : Analysis.Memory.CommitPeak.Mb
Value: 91
Key : Timeline.OS.Boot.DeltaSec
Value: 1625320
Key : Timeline.Process.Start.DeltaSec
Value: 10
Key : WER.OS.Branch
Value: vb_release
Key : WER.OS.Timestamp
Value: 2019-12-06T14:06:00Z
Key : WER.OS.Version
Value: 10.0.19041.1
FILE_IN_CAB: wfreerdp.DMP
NTGLOBALFLAG: 0
PROCESS_BAM_CURRENT_THROTTLED: 0
PROCESS_BAM_PREVIOUS_THROTTLED: 0
APPLICATION_VERIFIER_FLAGS: 0
EXCEPTION_RECORD: (.exr -1)
ExceptionAddress: 0000000000000000
ExceptionCode: 80000003 (Break instruction exception)
ExceptionFlags: 00000000
NumberParameters: 0
FAULTING_THREAD: 0000205c
PROCESS_NAME: wfreerdp.exe
ERROR_CODE: (NTSTATUS) 0x80000003 - {EXCEPTION} Breakpoint A breakpoint has been reached.
EXCEPTION_CODE_STR: 80000003
STACK_TEXT:
00000084`c21df698 00007ff8`978a306e : 0000024c`e8b6dbe0 00000000`00000000 00000000`00000000 0000024c`e8b6e790 : ntdll!NtWaitForSingleObject+0x14
00000084`c21df6a0 00007ff6`54b463be : 00000000`00000000 00000000`0000000c 00000000`00000000 00000000`0000032c : KERNELBASE!WaitForSingleObjectEx+0x8e
00000084`c21df740 00007ff6`54ed8910 : 00000000`0000000a 00007ff6`54ac0000 00000000`00000000 00000000`0000000a : wfreerdp!RdpClientEntry+0x194e
00000084`c21df810 00007ff8`998d7614 : 00000000`00000000 00000000`00000000 00000000`00000000 00000000`00000000 : wfreerdp!smartcard_pack_read_cache_return+0x126b50
00000084`c21df850 00007ff8`99f226a1 : 00000000`00000000 00000000`00000000 00000000`00000000 00000000`00000000 : kernel32!BaseThreadInitThunk+0x14
00000084`c21df880 00000000`00000000 : 00000000`00000000 00000000`00000000 00000000`00000000 00000000`00000000 : ntdll!RtlUserThreadStart+0x21
STACK_COMMAND: ~0s; .ecxr ; kb
SYMBOL_NAME: wfreerdp+194e
MODULE_NAME: wfreerdp
IMAGE_NAME: wfreerdp.exe
FAILURE_BUCKET_ID: BREAKPOINT_80000003_wfreerdp.exe!Unknown
OS_VERSION: 10.0.19041.1
BUILDLAB_STR: vb_release
OSPLATFORM_TYPE: x64
OSNAME: Windows 10
FAILURE_ID_HASH: {1fa1ce24-e6ea-bbe3-d753-51fb72f71ce5}
Followup: MachineOwner
---------
Hi!
I suggest you open a support ticket here: https://www.royalapps.com/go/support-ticket-new
Not sure how big the dump file is but maybe we can find a way to transfer the file somehow privately.
Thanks,
Stefan
Hi!
A small update from my investigation:
it’s extremely hard for me to reproduce the issue. At one time, it took almost an hour of constantly reconnecting to get a “hang/freeze”. I assume the more CPU cores a system has, the more “unlikely” the hang will happen.
From what I can tell, the issue seems to be that the FreeRDP window is created on a non-main thread and then, at a later point in time, the same window is shown on a completely different non-main thread. While this may work in most cases, it can be a potential source for the hang.
To prevent that and rule this out as a root cause, the window creation and showing of the window should happen on the same thread, ideally on the main thread. The current wfreerdp.exe does not have any facilities to process cross-threading messages. Maybe there are other ways to accomplish that. To implement something like that, one of the freerdp team may probably need to take a look at it.
I’ll keep you posted. Sorry for not having any better news at this time.
Regards,
Stefan
One of the FreeRDP maintainers was very kind and helpful and pushed a change which should fix the cross threading issue. I’ve just created a new Royal TS V7 Beta Build which also includes the new wfreerdp.exe with the fix:
x64 MSI: https://download.royalapps.com/RoyalTS/RoyalTSInstaller_7.00.20219.0_x64.msi
x64 ZIP: https://download.royalapps.com/RoyalTS/RoyalTS_7.00.20219.0_x64.zip
ARM64 MSI: https://download.royalapps.com/RoyalTS/RoyalTSInstaller_7.00.20219.0_ARM64.msi
ARM64 ZIP: https://download.royalapps.com/RoyalTS/RoyalTS_7.00.20219.0_ARM64.zip
Please note that this build hasn’t been fully tested yet but I wanted to let you try this build as soon as possible to see if the wfreerdp.exe fix is effective. \
Looking forward to your feedback. Thanks!
Can confirm - it works a lot better now. Will keep monitoring and let you know if there are any issues.
Hi Alexander,
thanks for testing. Btw, we released an official beta release yesterday:
https://www.royalapps.com/go/kb-ts-win-downloadbeta
You might want to upgrade to this one.
Also, just out of curiosity: did you have a single hang since the update?
Regards,
Stefan
